Semi-Automatic

Semi-Auto Miter Band Saws

Made in Taiwan

Select model

SJ-1018SATSJ-1220SATSJ-12SATSJ-15SATSJ-13SATSJ-18SATSJ-H1833SAT

Add to inquiry· SJ-1018SATInquire by Email

Or contact us directly

SJ-1018SAT

1 models

Item	Section	SJ-1018SAT
Capacity at 90	○ Round	10" (260mm)
	□ Square	10" (260mm)
	▭ Rect.	8"x 18" (200x460mm)
Capacity at 45	○ Round	10" (260mm)
	□ Square	10" (260mm)
	▭ Rect.	10"x 12" (260x300mm)
Capacity at 60	○ Round	6" (155mm)
	□ Square	5 1/2" (140mm)
	▭ Rect.	6"x 5" (155x125mm)
Blade size	—	1 "x144" (27mmx0.9mmx3660mm)
Motor	—	2HP(1.5KW)
Speed range	—	50,125, 200, 275 FPM (15,38,61,84 MPM)
Packing size	—	85" x 40" x 44" (215cmx101 1/2cmx113cm)
Net weight	—	500Kgs (1100lbs)
Gross weight	—	550Kgs (1210lbs)

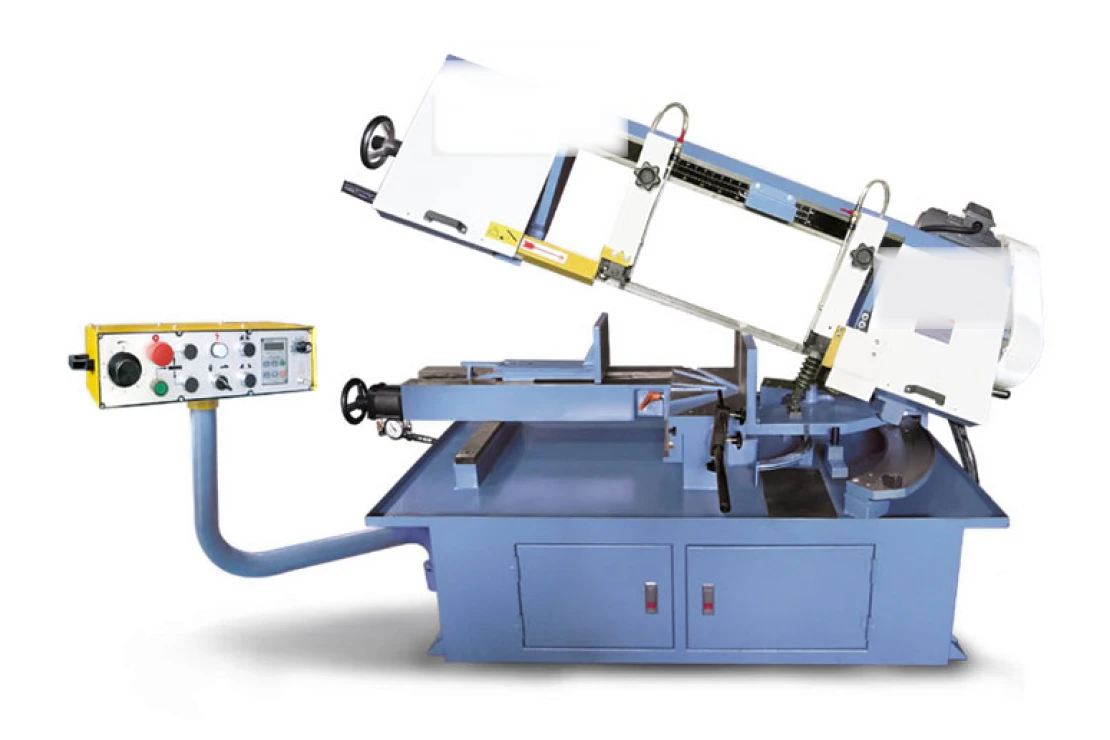

SJ-1220SAT

1 models

Item	Section	SJ-1220SAT
Capacity at 90	○ Round	12" (305mm)
	□ Square	12" (305mm)
	▭ Rect.	12"x 20" (305x500mm)
Capacity at 45	○ Round	12" (305mm)
	□ Square	12" (305mm)
Capacity at 60	○ Round	8" (200mm)
	□ Square	7 1/4" (185mm)
	▭ Rect.	6 1/4"x 8" (160x200mm)
Blade size	—	1 "x150 3/8" (27mmx0.9mmx3820mm)
Motor	—	2HP(1.5KW)
Speed range	—	50,125, 200, 275 FPM (15,38,61,84 MPM)
Packing size	—	88" x 40" x 44" (224cmx101 1/2cmx113cm)
Net weight	—	570Kgs (1254lbs)
Gross weight	—	620Kgs (1364lbs)

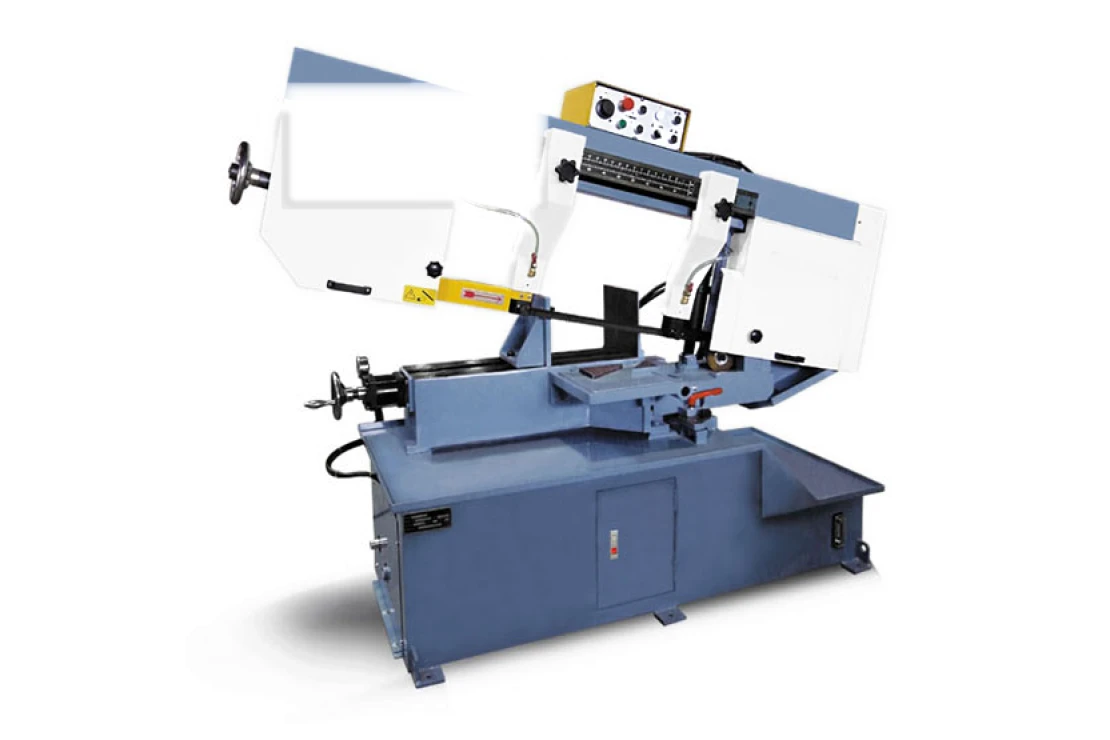

SJ-12SAT〜SJ-15SAT

2 models

Item	Section	SJ-12SAT	SJ-15SAT
Capacity at 90	○ Round	12" (300mm)	15" (380mm)
	□ Square	9" (230mm)	11" (280mm)
	▭ Rect.	9"x 13" (230x330mm)	11"x 20 1/2" (280x520mm)
Capacity at 45	○ Round	9 1/2" (240mm)	13 3/4" (350mm)
	□ Square	7 1/2" (190mm)	11" (280mm)
	▭ Rect.	7 1/2"x 9 1/2" (190x240mm)	11"x 13 3/4" (280x350mm)
Blade size	—	1"x150 3/8" (27mmx0.9mmx3820mm)	1"x162" (27mmx0.9mmx4115mm)
Motor	—	3HP(2.25KW)	3HP(2.25KW)
Speed range	—	42,70,85,110,135,210 FPM (13,21,26,34,41,64 MPM)	42,70,85,110,135,210 FPM (13,21,26,34,41,64 MPM)
Packing size	—	86" x 31" x 61" (218cmx79cmx156cm)	90" x 36" x 62" (228cmx91cmx164cm)
Net weight	—	850Kgs (1870lbs)	950Kgs (2090lbs)
Gross weight	—	950Kgs (2090lbs)	1050Kgs (2310lbs)

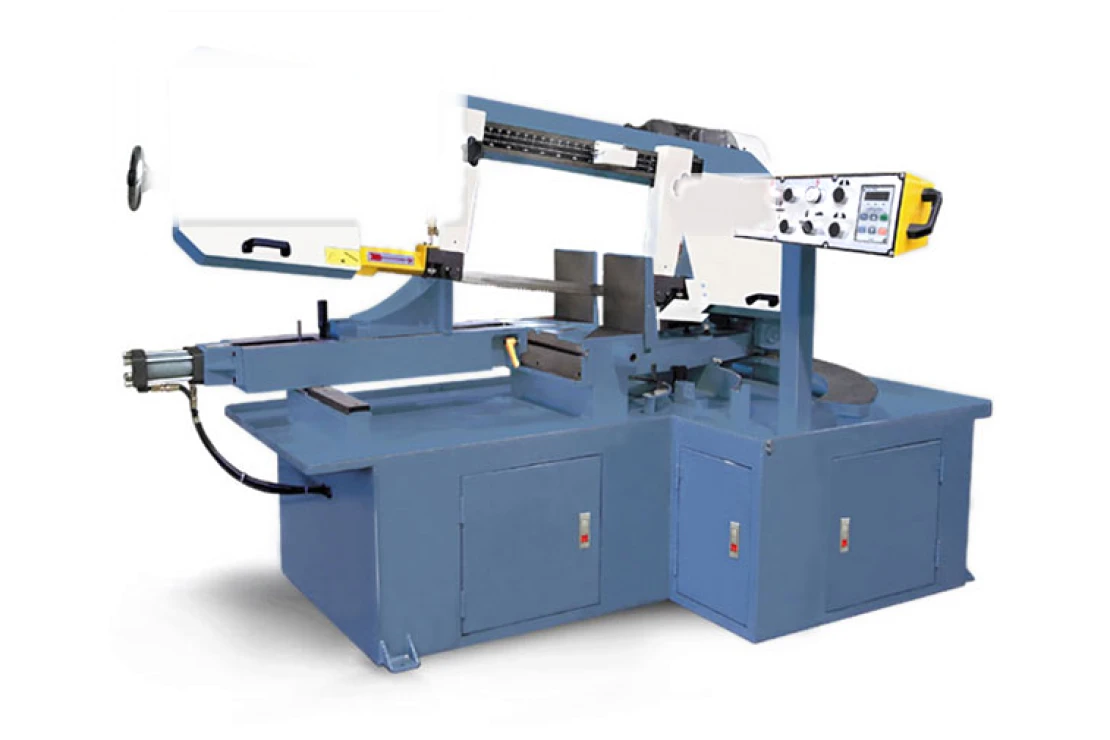

SJ-13SAT

1 models

Item	Section	SJ-13SAT
Capacity at 90	○ Round	13" (330mm)
	□ Square	13" (330mm)
	▭ Rect.	12"x 23 1/2" (300x600mm)
Capacity at 45	○ Round	13" (330mm)
	□ Square	13" (330mm)
	▭ Rect.	8"x 16" (200x400mm)
Capacity at 60	○ Round	11" (280mm)
	□ Square	11" (280mm)
	▭ Rect.	7"x 12" (180x300mm)
Blade size	—	1 1/4"x172" (34mmx1.1mmx4365mm)
Motor	—	3HP(2.25KW)
Speed range	—	50~297 FPM (15~90 MPM)
Packing size	—	90" x 60" x 60" (228cmx154cmx154cm)
Net weight	—	830Kgs (1826lbs)
Gross weight	—	950Kgs (2090lbs)

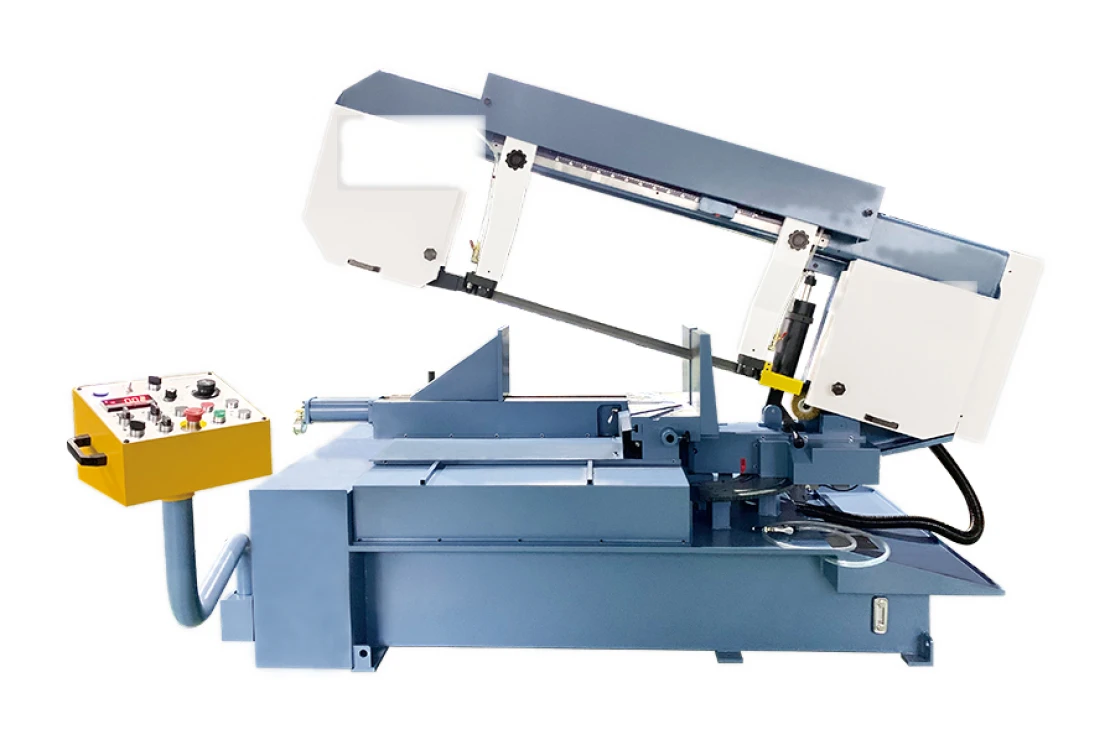

SJ-18SAT

1 models

Item	Section	SJ-18SAT
Capacity at 90	○ Round	18" (460mm)
	□ Square	13 3/4" (350mm)
	▭ Rect.	13 3/4"x 27 1/2" (350x700mm)
Capacity at 45	○ Round	18" (460mm)
	□ Square	13 3/4" (350mm)
	▭ Rect.	13 3/4"x 18 4/5" (350x480mm)
Capacity at 60	○ Round	13" (330mm)
	□ Square	12" (300mm)
	▭ Rect.	13 3/4"x 12" (350x300mm)
Blade size	—	1 1/2"x202" (41mmx1.3mmx5130mm)
Motor	—	5HP(3.75KW)
Speed range	—	50~297 FPM (15~90 MPM)
Packing size	—	108" x 50 1/2" x 70" (275cmx128cmx175cm)
Net weight	—	1260Kgs (2772lbs)
Gross weight	—	1440Kgs (3168lbs)

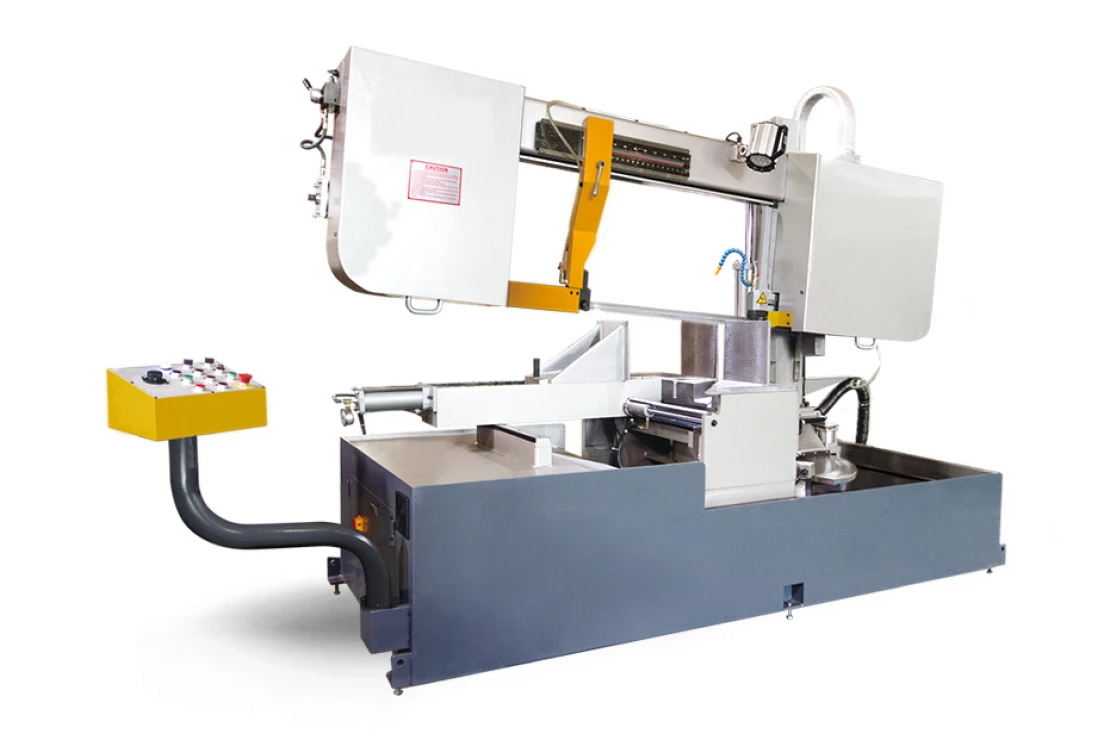

SJ-H1833SAT

1 models

Item	Section	SJ-H1833SAT
Capacity at 90	○ Round	18" (460mm)
	□ Square	18" (460mm)
	▭ Rect.	18"x 31 1/2" (460x800mm)
Capacity at 45	○ Round	18" (460mm)
	□ Square	18" (460mm)
Capacity at 60	○ Round	15" (380mm)
	□ Square	15" (380mm)
Blade size	—	1 3/5"x0.051"x240" (41mmx1.3mmx6100mm)
Motor	—	7.5HP(5.63KW)
Speed range	—	50~297 FPM (15~90 MPM)
Packing size	—	136" x 45" x 91" (345cmx115cmx230cm)
Net weight	—	2300Kgs (5060lbs)
Gross weight	—	2500Kgs (5500lbs)

Specifications are subject to change without notice; the delivered machine governs. Cutting capacity is listed per cross-section; entries marked "-" are not listed in the catalogue - please enquire.
