Eziturn Intuitive Touch Smart Lathe

A conversational lathe is a CNC lathe that needs no G/M code. The operator enters machining parameters (diameter, length, feed, etc.) in on-screen table fields via the keypad, and the controller generates the program from those values. Compared with a traditional CNC lathe that requires G/M code or CAD/CAM, conversational operation greatly lowers the programming barrier.

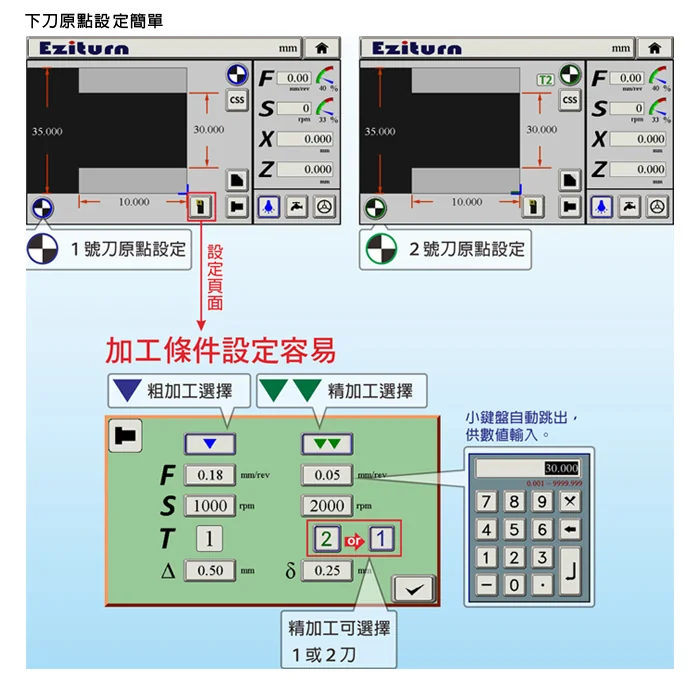

Both eliminate G/M code. The difference is how you operate. A conversational lathe enters parameters through keypad-and-table fields. LIHAITEC's Intuitive Touch Smart lathe uses a blueprint-style interface: you tap the target point on the on-screen drawing, a small keypad pops up to enter the dimension or machining condition there, and the system automatically detects the contour and generates the toolpath — closer to machining straight from the part drawing, more visual and with a lower learning curve.

A CNC lathe gives you the cutting capability, but turning that into a finished part still relies on someone writing G/M code or operating a computer-aided drawing system (CAD/CAM). Yet 'aided' is only aided — if the operator lacks the ability to draft and convert the code, the system cannot fill the gap: the drawing still does not get made and the program still does not get generated. It is like handing ingredients to a chef — a different cook yields a different result. LIHAITEC's Intuitive Touch Smart lathe removes that barrier: just read the drawing, tap the points on the touchscreen and enter dimensions and machining conditions, and LIHAITEC's in-house smart control system automatically detects the contour and generates the toolpath — no G/M code, no CAD/CAM. The same drawing and conditions produce a consistent path regardless of the operator's programming ability, lowering the requirement from 'able to program' to 'able to read a drawing', and giving traditional shops an on-ramp to smart machinery and smart manufacturing.

The operator taps the machining point on the part drawing, and the system automatically detects the contour and generates the corresponding toolpath — no G/M code, no CAD/CAM. This automated machining capability is based on LIHAITEC Utility Model patent M670627 (Automated Machine Tool Controller) and is available today on current production models.

No. LIHAITEC's Eziturn Intuitive Touch Smart lathe uses blueprint-style operation with no G/M code and no CAD/CAM. An operator with basic drawing-reading skills can get productive within about 2 hours to half a day. A machine is for machining parts — not for learning a programming language.

No. The intuitive controller turns text-and-command operations into graphics and symbols — operators tap the drawing and set conditions through symbols rather than reading text commands. The graphical, symbol-based interface crosses language and literacy barriers, so operators of any native language or region can use it directly, and it spares exported machines the burden of multi-language interfaces.

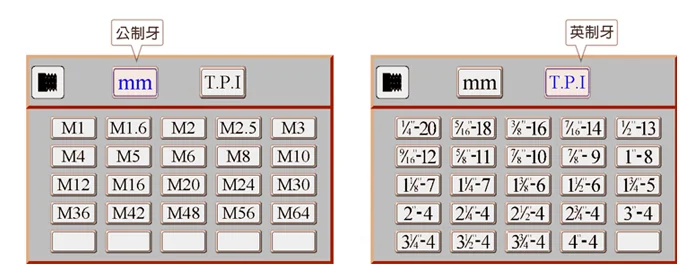

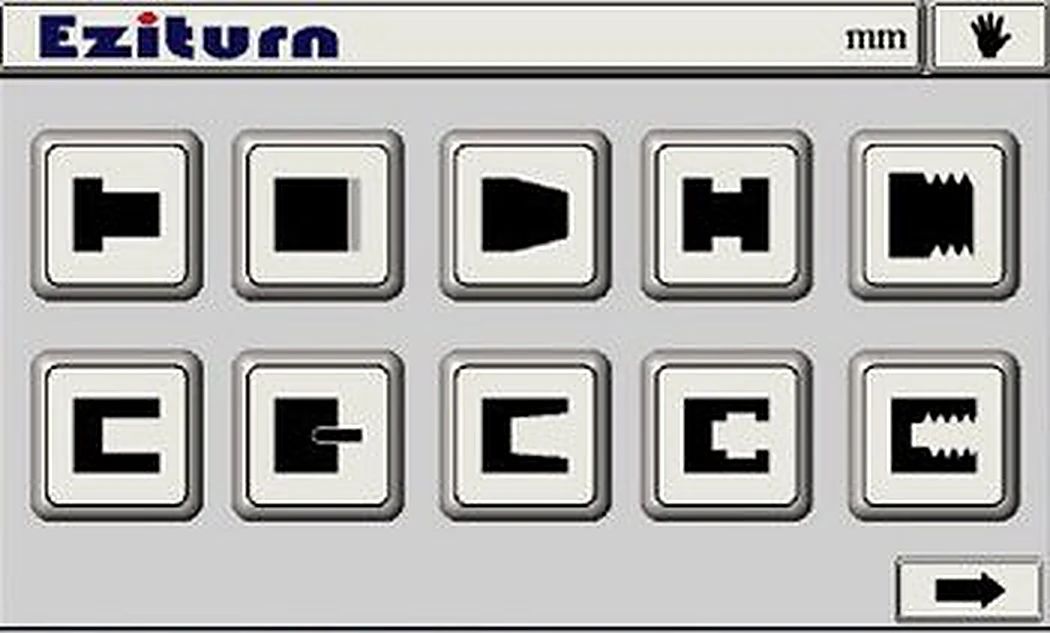

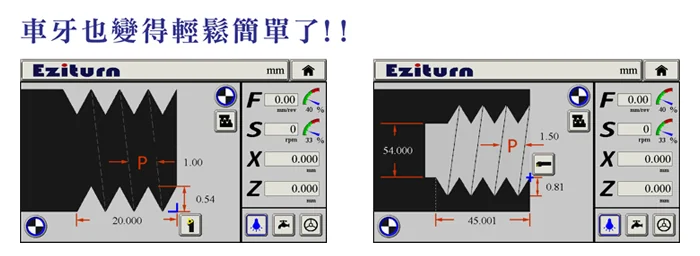

Through its blueprint-style intuitive touch interface it covers turning, facing, chamfering, internal and external grooving (arc / angled), threading, arc contouring and drilling, and can link multiple operations into one continuous program to finish a part in a single setup. Actual machining ranges depend on the model.

Yes. Save the machining graphics, conditions and origin; recall the setup and run full-auto repeat production — no programming required, so it is not limited to one-off parts.

Yes. The machine can be fitted with a robotic arm and an automatic bar feeder / load-unload unit. Together with the saved machining graphics, conditions and origin, it handles loading, unloading and continuous cutting automatically for lights-out mass production — full line automation with no programming.

Yes. LIHAITEC builds to order, configuring the machine to your part sizes, operations and automation needs; slant-bed (inclined-bed) lathe models are available. With a robotic arm and automatic feeding the line can run unmanned around the clock — 24 hours non-stop. Contact us for configuration and model selection.
