Manual

Manual Miter Band Saws

Made in Taiwan

Select model

Inquire by Email

Or contact us directly

SJ-320

1 models

Item	Section	SJ-320
Capacity at 90	○ Round	8 1/2" (220mm)
	□ Square	8" (200mm)
	▭ Rect.	6"x 12 1/2" (150x320mm)
Capacity at 45	○ Round	8" (200mm)
	□ Square	6" (150mm)
	▭ Rect.	6"x 9" (150x230mm)
Blade size	—	1 "x115" (27mmx0.9mmx2920mm)
Motor	—	1HP(0.75KW)
Speed range	—	132,264 FPM (40,80 MPM)
Packing size	—	72" x 30" x 61" (182cmx75cmx154 1/2cm)
Net weight	—	270Kgs (594lbs)
Gross weight	—	320Kgs (704lbs)

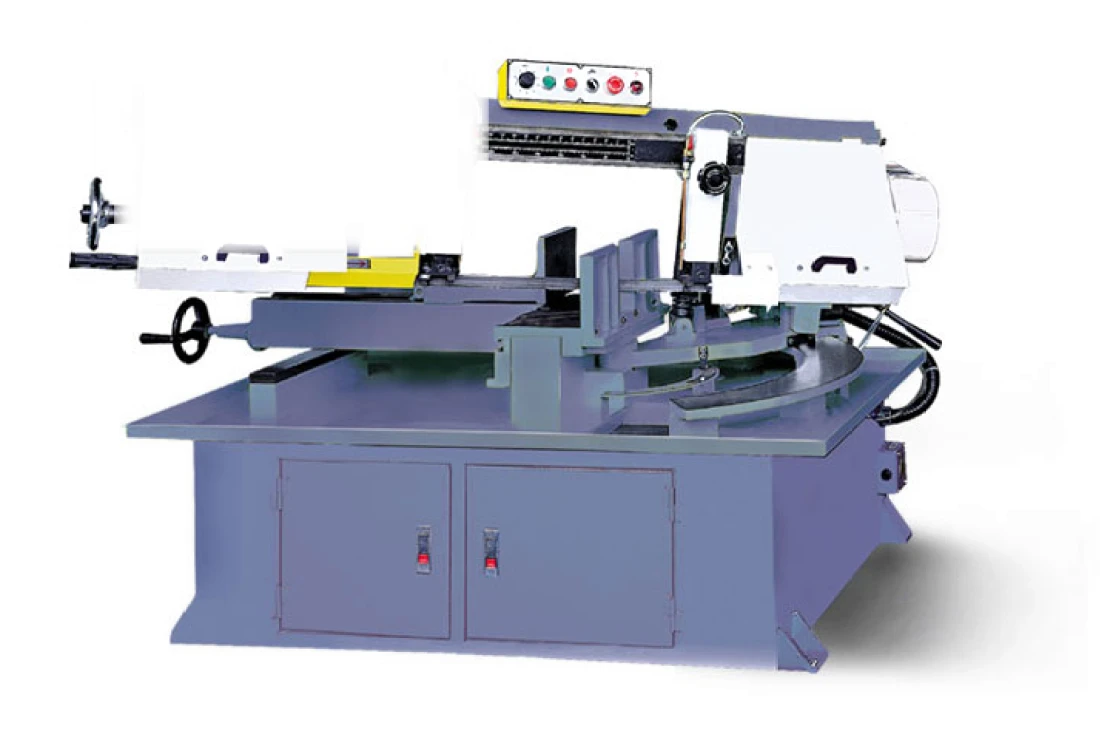

SJ-1018T

1 models

Item	Section	SJ-1018T
Capacity at 90	○ Round	10" (260mm)
	□ Square	10" (260mm)
	▭ Rect.	8"x 18" (200x460mm)
Capacity at 45	○ Round	10" (260mm)
	□ Square	10" (260mm)
	▭ Rect.	10"x 12" (260x300mm)
Capacity at 60	○ Round	6" (155mm)
	□ Square	5 1/2" (140mm)
	▭ Rect.	6"x 5" (155x125mm)
Blade size	—	1 "x144" (27mmx0.9mmx3660mm)
Motor	—	2HP(1.5KW)
Speed range	—	50,125, 200, 275 FPM (15,38,61,84 MPM)
Packing size	—	85" x 40" x 44" (215cmx101 1/2cmx113cm)
Net weight	—	470Kgs (1034lbs)
Gross weight	—	520Kgs (1144lbs)

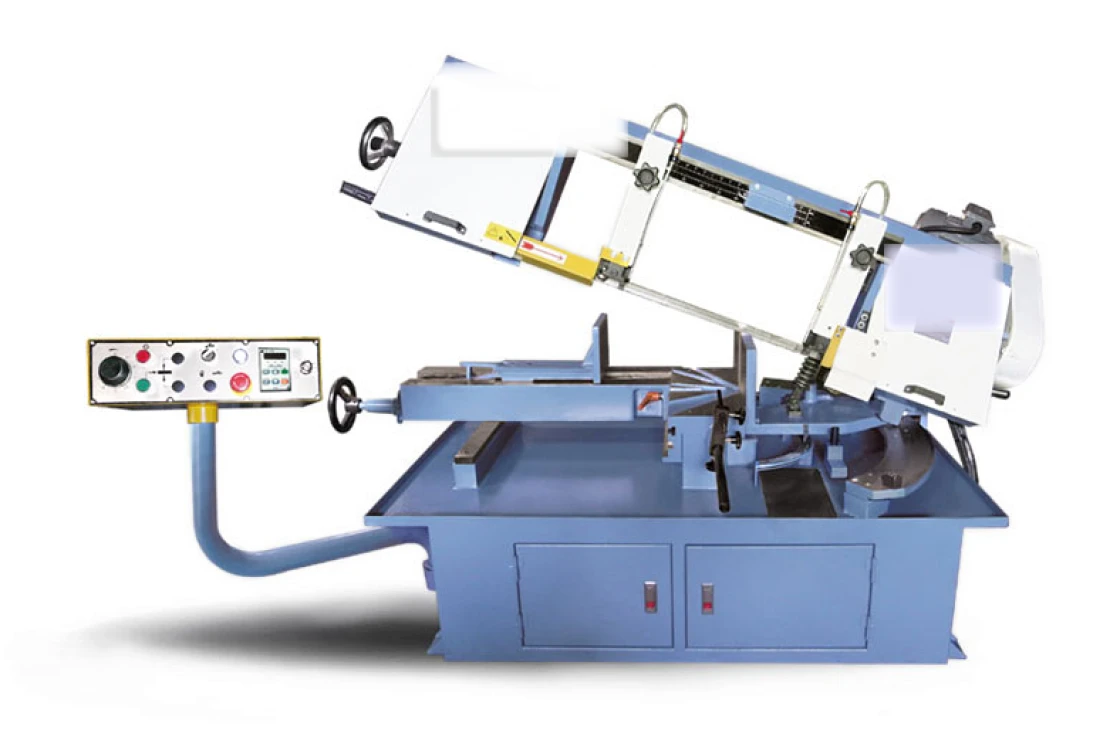

SJ-1220T

1 models

Item	Section	SJ-1220T
Capacity at 90	○ Round	12" (305mm)
	□ Square	12" (305mm)
	▭ Rect.	12"x 20" (305x500mm)
Capacity at 45	○ Round	12" (305mm)
Capacity at 45	□ Square	12" (305mm)
Capacity at 60	○ Round	8" (200mm)
	□ Square	7 1/4" (185mm)
	▭ Rect.	6 1/4"x 8" (160x200mm)
Blade size	—	1 "x150 3/8" (27mmx0.9mmx3820mm)
Motor	—	2HP(1.5KW)
Speed range	—	50,125, 200, 275 FPM (15,38,61,84 MPM)
Packing size	—	88" x 40" x 44" (224cmx101 1/2cmx113cm)
Net weight	—	540Kgs (1188lbs)
Gross weight	—	590Kgs (1298lbs)

Specifications are subject to change without notice; the delivered machine governs. Cutting capacity is listed per cross-section; entries marked "-" are not listed in the catalogue - please enquire.
