Conventional Lathes

MA-S42 / S50 / S60 Series

Made in Taiwan

Select model

Inquire by Email

Or contact us directly

MA-S4200

7 models

Item	Unit	MA-S4260(i)	MA-S4280(i)	MA-S42120(i)	MA-S42160(i)	MA-S42200(i)	MA-S42240(i)	MA-S42280(i)
CAPACITY
Swing over bed	mm	1070	1070	1070	1070	1070	1070	1070
Swing over gap	mm	1520 (opt.)	1520 (opt.)	1520 (opt.)	1520 (opt.)	1520 (opt.)	1520 (opt.)	1520 (opt.)
Swing over cross slide	mm	744	744	744	744	744	744	744
Distance between center	mm	1700	2200	3200	4200	5200	6200	7200
Bed width	mm	625	625	625	625	625	625	625
SPINDLE
Spindle bore	mm	Ø155 (6”)	Ø155 (6”)	Ø155 (6”)	Ø155 (6”)	Ø230(9”) opt.	Ø230(9”) opt.	Ø230(9”) opt.
Spindle nose	-	A2-11	A2-11	A2-11	A2-11	A2-15	A2-15	A2-15
Spindle speeds 18 steps	rpm	5~615	5~615	5~615	5~615	4~430	4~430	4~430
Inverter type (variable 3 steps)	rpm	7~710	7~710	7~710	7~710	6~500	6~500	6~500
TRAVEL
Gross slide travel	mm	700	700	700	700	700	700	700
Compound rest travel	mm	380	380	380	380	380	380	380
TAILSTOCK
Tailstock spindle dia.	mm	165	165	165	165	165	165	165
Tailstock spindle taper	-	MT#6	MT#6	MT#6	MT#6	MT#6	MT#6	MT#6
MOTOR
Main spindle motor	HP	20 / 25 or 30 (opt.)	20 / 25 or 30 (opt.)	20 / 25 or 30 (opt.)	20 / 25 or 30 (opt.)	20 / 25 or 30 (opt.)	20 / 25 or 30 (opt.)	20 / 25 or 30 (opt.)

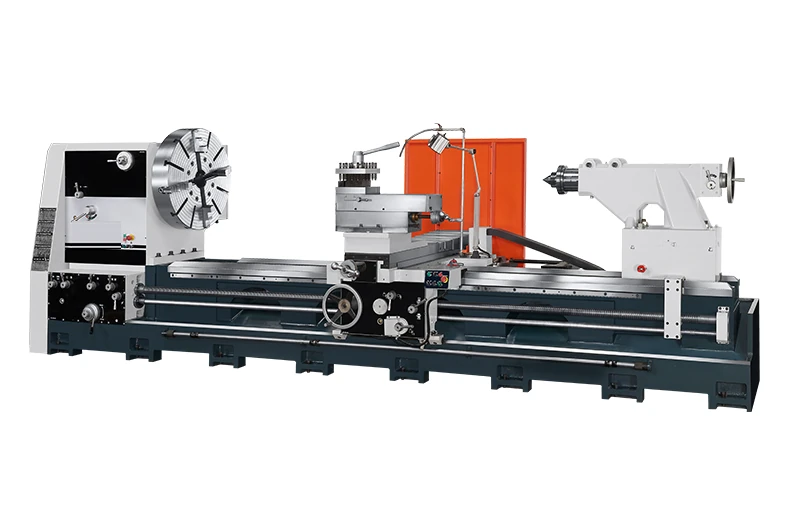

MA-S5000

7 models

Item	Unit	MA-S5060(i)	MA-S5080(i)	MA-S50120(i)	MA-S50160(i)	MA-S50200(i)	MA-S50240(i)	MA-S50280(i)
CAPACITY
Swing over bed	mm	1270	1270	1270	1270	1270	1270	1270
Swing over gap	mm	1720 (opt.)	1720 (opt.)	1720 (opt.)	1720 (opt.)	1720 (opt.)	1720 (opt.)	1720 (opt.)
Swing over cross slide	mm	944	944	944	944	944	944	944
Distance between center	mm	1700	2200	3200	4200	5200	6200	7200
Bed width	mm	625	625	625	625	625	625	625
SPINDLE
Spindle bore	mm	Ø155(6”)	Ø155(6”)	Ø155(6”)	Ø155(6”)	Ø230(9”)opt.	Ø230(9”)opt.	Ø230(9”)opt.
Spindle nose	-	A2-11	A2-11	A2-11	A2-11	A2-15	A2-15	A2-15
Spindle speeds 18 steps	rpm	5~615	5~615	5~615	5~615	4~430	4~430	4~430
Inverter type (variable 3 steps)	rpm	7~710	7~710	7~710	7~710	6~500	6~500	6~500
TRAVEL
Gross slide travel	mm	700	700	700	700	700	700	700
Compound rest travel	mm	380	380	380	380	380	380	380
TAILSTOCK
Tailstock spindle dia.	mm	165	165	165	165	165	165	165
Tailstock spindle taper	-	MT#6	MT#6	MT#6	MT#6	MT#6	MT#6	MT#6
MOTOR
Main spindle motor	HP	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)

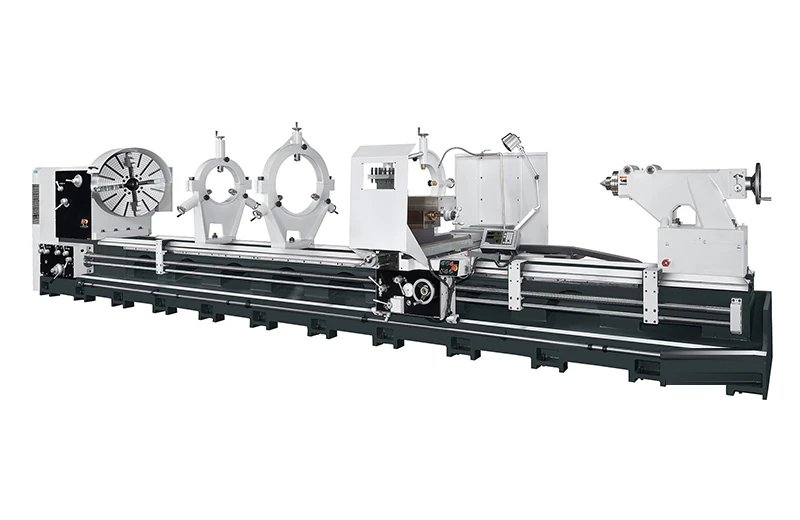

MA-S6000

7 models

Item	Unit	MA-S6060(i)	MA-S6080(i)	MA-S60120(i)	MA-S60160(i))	MA-S60200(i)	MA-S60240(i)	MA-S60280(i)
CAPACITY
Swing over bed	mm	1500	1500	1500	1500	1500	1500	1500
Swing over gap	mm	1950 (opt.)	1950 (opt.)	1950 (opt.)	1950 (opt.)	1950 (opt.)	1950 (opt.)	1950 (opt.)
Swing over cross slide	mm	1100	1100	1100	1100	1100	1100	1100
Distance between center	mm	1700	2200	3200	4200	5200	6200	7200
Bed width	mm	625	625	625	625	625	625	625
SPINDLE
Spindle bore	mm	Ø155(6”)	Ø155(6”)	Ø155(6”)	Ø155(6”)	Ø 230(9”)opt.	Ø 230(9”)opt.	Ø 230(9”)opt.
Spindle nose	-	A2-11	A2-11	A2-11	A2-11	A2-15	A2-15	A2-15
Spindle speeds 18 steps	rpm	5~615	5~615	5~615	5~615	4~430	4~430	4~430
Inverter type (variable 3 steps)	rpm	7~710	7~710	7~710	7~710	6~500	6~500	6~500
TRAVEL
Gross slide travel	mm	750	750	750	750	750	750	750
Compound rest travel	mm	380	380	380	380	380	380	380
TAILSTOCK
Tailstock spindle dia.	mm	165	165	165	165	165	165	165
Tailstock spindle taper	-	MT#6	MT#6	MT#6	MT#6	MT#6	MT#6	MT#6
MOTOR
Main spindle motor	HP	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)	20 / 25 or 30(opt.)

Specifications are subject to change without notice; the delivered machine governs. Entries marked "-" are not listed in the catalogue - please enquire.
