Conventional Lathes
MA-30 / 33 Series
Made in Taiwan
Select model
MA-3000
6 models| Item | Unit | MA-3060(i) | MA-3080(i) | MA-30120(i) | MA-30160(i) | MA-30200(i) | MA-30240(i) |
|---|---|---|---|---|---|---|---|
| CAPACITY | |||||||
| Swing over bed | mm | 770 | 770 | 770 | 770 | 770 | 770 |
| Swing over gap | mm | 1010 (opt.) | 1010 (opt.) | 1010 (opt.) | 1010 (opt.) | 1010 (opt.) | 1010 (opt.) |
| Swing over cross slide | mm | 520 | 520 | 520 | 520 | 520 | 520 |
| Distance between center | mm | 1600 | 2100 | 3100 | 4100 | 5100 | 6100 |
| Bed width | mm | 450 | 450 | 450 | 450 | 450 | 450 |
| SPINDLE | |||||||
| Spindle bore | mm | Ø105(4”) | Ø105(4”) | Ø105(4”) | Ø105(4”) | Ø155 (6”)opt. | Ø155 (6”)opt. |
| Spindle nose | - | A1-11 | A1-11 | A1-11 | A1-11 | A2-11 | A2-11 |
| Spindle speeds (18 steps) | rpm | 23~1293 | 23~1293 | 23~1293 | 23~1293 | 13~690 | 13~690 |
| Inverter type (variable 3 steps) | rpm | 20~1500 | 20~1500 | 20~1500 | 20~1500 | 10~800 | 10~800 |
| TRAVEL | |||||||
| Gross slide travel | mm | 450 | 450 | 450 | 450 | 450 | 450 |
| Compound rest travel | mm | 250 | 250 | 250 | 250 | 250 | 250 |
| TAILSTOCK | |||||||
| Tailstock spindle dia. | mm | 105 | 105 | 105 | 105 | 105 | 105 |
| Tailstock spindle taper | - | MT#5 | MT#5 | MT#5 | MT#5 | MT#5 | MT#5 |
| MOTOR | |||||||
| Main spindle motor | HP | 15 / 20 (opt.) | 15 / 20 (opt.) | 15 / 20 (opt.) | 15 / 20 (opt.) | 15 / 20 (opt.) | 15 / 20 (opt.) |

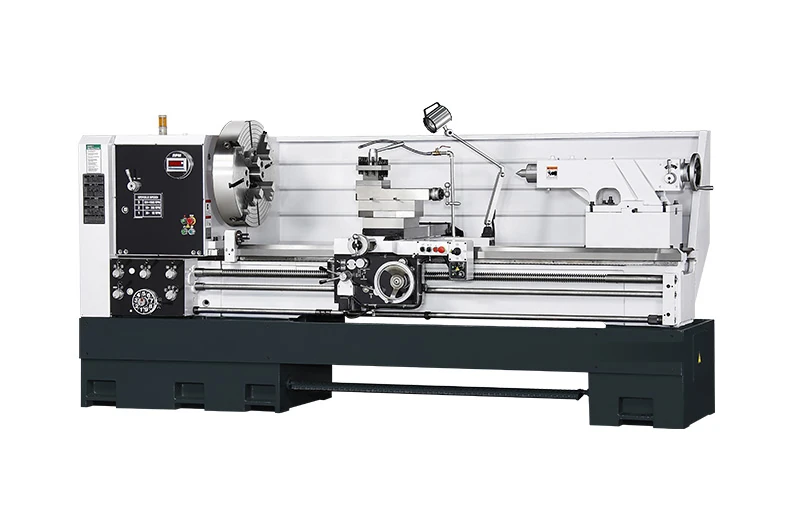

MA-3300
6 models
| Item | Unit | MA- 3360(i) | MA- 3380(i) | MA- 33120(i) | MA- 33160(i) | MA- 33200(i) | MA- 33240(i) |
|---|---|---|---|---|---|---|---|
| CAPACITY | |||||||
| Swing over bed | mm | 840 | 840 | 840 | 840 | 840 | 840 |
| Swing over gap | mm | 1080 (opt.) | 1080 (opt.) | 1080 (opt.) | 1080 (opt.) | 1080 (opt.) | 1080 (opt.) |
| Swing over cross slide | mm | 590 | 590 | 590 | 590 | 590 | 590 |
| Distance between center | mm | 1600 | 2100 | 3100 | 4100 | 5100 | 6100 |
| Bed width | mm | 450 | 450 | 450 | 450 | 450 | 450 |
| SPINDLE | |||||||
| Spindle bore | mm | Ø105(4”) | Ø105(4”) | Ø155(6”)opt. | Ø230(9”)opt. | Ø230(9”)opt. | Ø305(12")opt. |
| Spindle nose | - | A1-11 | A1-11 | A2-11 | A2-15 | A2-15 | A2-20 |
| Spindle speeds ( 18 steps) | rpm | 23~1293 | 23~1293 | 13~690 | 5~440~5 | 5~440~5 | - |
| Inverter type (variable 3 steps) | rpm | 20~1500 | 20~1500 | 10~800 | 6~450 | 6~450 | 5~350 |
| TRAVEL | |||||||
| Gross slide travel | mm | 450 | 450 | 450 | 450 | 450 | 450 |
| Compound rest travel | mm | 250 | 250 | 250 | 250 | 250 | 250 |
| TAILSTOCK | |||||||
| Tailstock spindle dia. | mm | 105 | 105 | 105 | 105 | 105 | 105 |
| Tailstock spindle taper | - | MT#5 | MT#5 | MT#5 | MT#5 | MT#5 | MT#5 |
| MOTOR | |||||||
| Main spindle motor | HP | 15 / 20 or 25(opt.) | 15 / 20 or 25(opt.) | 15 / 20 or 25(opt.) | 15 / 20 or 25(opt.) | 15 / 20 or 25(opt.) | 15 / 20 or 25(opt.) |
Specifications are subject to change without notice; the delivered machine governs. Entries marked "-" are not listed in the catalogue - please enquire.
