Flat-Bed CNC Lathes

AC-26 / 30 / 33 Series

These machines accept third-party CNC controllers, specified to match the brand your team already services — spare parts and operator training carry over. If you need graphical, automated programming without writing G/M code, see the Eziturn intuitive-touch smart lathes.

Eziturn intuitive-touch lathes

Made in Taiwan

Select model

Inquire by Email

Or contact us directly

AC-2600

6 models

Item	Unit	AC-2660	AC-2680	AC-26120	AC-26160	AC-26200	AC-26240
CAPACITY
Swing over bed	mm	670	670	670	670	670	670
Swing over gap	mm	880 (opt.)	880 (opt.)	880 (opt.)	880 (opt.)	880 (opt.)	880 (opt.)
Swing over cross slide	mm	400	400	400	400	400	400
Dist. Between center	mm	1700	2200	3200	4200	5200	6200
Bed width	mm	450	450	450	450	450	450
SPINDLE
Spindle bore	mm	Ø85 (3")	Ø85 (3")	Ø85 (3")	Ø85 (3")	Ø85 (3")	Ø85 (3")
Spindle nose	-	D1-8	D1-8	D1-8	D1-8	D1-8	D1-8
Spindle speeds (3 steps)	rpm	27~2250	27~2250	27~2250	27~2250	27~2250	27~2250
TRAVEL
Cross slide travel X-axis	mm	450	450	450	450	450	450
Longitudinal travel Z-axis	mm	1600	2100	3100	4100	5100	6100
TAILSTOCK
Quill dia.	mm	Ø105	Ø105	Ø105	Ø120	Ø120	Ø120
Quill inside taper	-	MT#5	MT#5	MT#5	MT#6	MT#6	MT#6
MOTOR
Spindle motor	kw	15 / 22 (opt)	15 / 22 (opt)	15 / 22 (opt)	15 / 22 (opt)	15 / 22 (opt)	15 / 22 (opt)

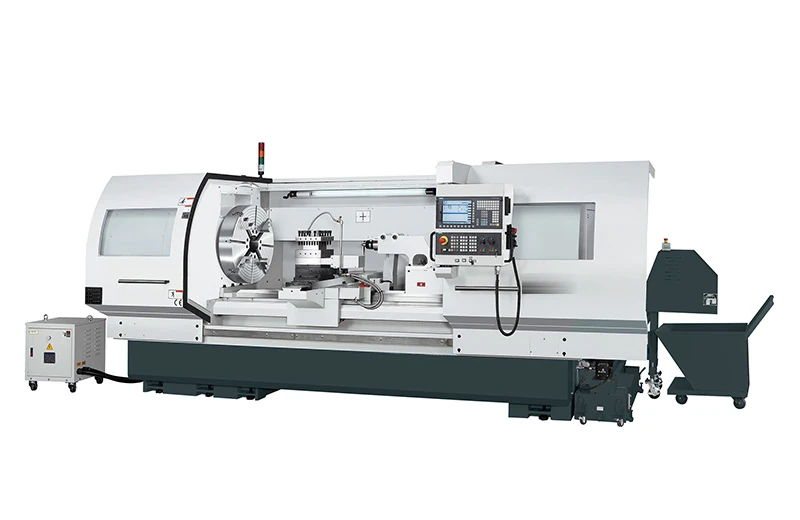

AC-3000

6 models

Item	Unit	AC-3060	AC-3080	AC-30120	AC-30160	AC-30200	AC-30240
CAPACITY
Swing over bed	mm	770	770	770	770	770	770
Swing over gap	mm	1010 (opt.)	1010 (opt.)	1010 (opt.)	1010 (opt.)	1010 (opt.)	1010 (opt.)
Swing over cross slide	mm	500	500	500	500	500	500
Dist. Between center	mm	1700	2200	3200	4200	5200	6200
Width of bed	mm	450	450	450	450	450	450
SPINDLE
Spindle bore	mm	Ø105 (4")	Ø105 (4")	Ø105 (4")	Ø155 (6") opt.	Ø155 (6") opt.	Ø155 (6") opt.
Spindle nose	-	A1-11	A1-11	A1-11	A2-11	A2-11	A2-11
Spindle speeds (3 steps)	rpm	20~1500	20~1500	20~1500	10~800	10~800	10~800
TRAVEL
Cross slide travel X-axis	mm	450	450	450	450	450	450
Longitudinal travel Z-axis	mm	1600	2100	3100	4100	5100	6100
TAILSTOCK
Quill dia.	mm	Ø105	Ø105	Ø105	Ø120	Ø120	Ø120
Quill inside taper	-	MT#5	MT#5	MT#5	MT#6	MT#6	MT#6
MOTOR
Spindle motor	kw	15 / 22 (opt.)	15 / 22 (opt.)	15 / 22 (opt.)	15 / 22 (opt.)	15 / 22 (opt.)	15 / 22 (opt.)

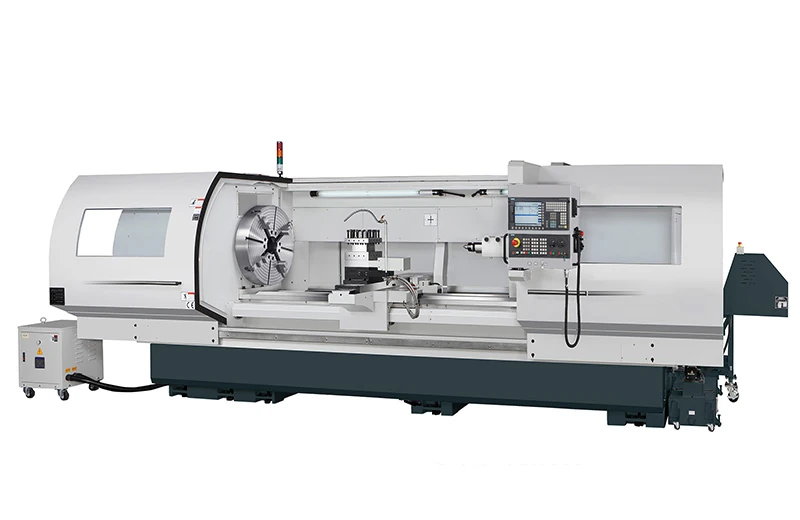

AC-3300

6 models

Item	Unit	AC-3360	AC-3380	AC-33120	AC-33160	AC-33200	AC-33240
CAPACITY
Swing over bed	mm	840	840	840	840	840	840
Swing over gap	mm	1080 (opt.)	1080 (opt.)	1080 (opt.)	1080 (opt.)	1080 (opt.)	1080 (opt.)
Swing over cross slide	mm	570	570	570	570	570	570
Dist. Between center	mm	1700	2200	3200	4200	5200	6200
Width of bed	mm	450	450	450	450	450	450
SPINDLE
Spindle bore	mm	Ø105 (4")	Ø105 (4")	Ø155 (6") opt.	Ø230 (9") opt.	Ø230 (9") opt.	Ø305 (12") opt.
Spindle nose	-	A1-11	A1-11	A2-11	A2-15	A2-15	A2-20
Spindle speeds (3 steps)	rpm	20~1500	20~1500	10~800	6~450	6~450	5~350
TRAVEL
Cross slide travel X-axis	mm	450	450	450	450	450	450
Longitudinal travel Z-axis	mm	1600	2100	3100	4100	5100	6100
TAILSTOCK
Quill dia.	mm	Ø105	Ø105	Ø105	Ø120	Ø120	Ø120
Quill inside taper	-	MT#5	MT#5	MT#5	MT#6	MT#6	MT#6
MOTOR
Spindle motor	kw	15 / 22 (opt.)	15 / 22 (opt.)	15 / 22 (opt.)	15 / 22 (opt.)	15 / 22 (opt.)	15 / 22 (opt.)

Specifications are subject to change without notice; the delivered machine governs. Entries marked "-" are not listed in the catalogue - please enquire.
