Flat-Bed CNC Lathes
AC-18 / 21 / 25 Series
These machines accept third-party CNC controllers, specified to match the brand your team already services — spare parts and operator training carry over. If you need graphical, automated programming without writing G/M code, see the Eziturn intuitive-touch smart lathes.
Eziturn intuitive-touch lathesMade in Taiwan
Select model
AC-1800
3 models| Item | Unit | AC-1840 | AC-1860 | AC-1880 |
|---|---|---|---|---|
| CAPACITY | ||||
| Swing over bed | mm | 460 | 460 | 460 |
| Swing over gap | mm | 640 (opt.) | 640 (opt.) | 640 (opt.) |
| Swing over cross slide | mm | 230 | 230 | 230 |
| Dist. Between center | mm | 1000 | 1500 | 2000 |
| Bed width | mm | 350 | 350 | 350 |
| SPINDLE | ||||
| Spindle bore | mm | 58 (2”) | 58 (2”) | 58 (2”) |
| Spindle nose | - | D1-6 | D1-6 | D1-6 |
| Spindle speeds | rpm | 33 ~ 3100 | 33 ~ 3100 | 33 ~ 3100 |
| TRAVEL | ||||
| Cross slide travel X-axis | mm | 280 | 280 | 280 |
| Longitudinal travel Z-axis | mm | 850 | 1350 | 1850 |
| TAILSTOCK | ||||
| Quill dia. | mm | Ø 75 | Ø 75 | Ø 75 |
| Quill inside taper | - | MT# 5 | MT# 5 | MT# 5 |
| MOTOR | ||||
| Spindle motor | kw | 7.5 / 11 (opt.) | 7.5 / 11 (opt.) | 7.5 / 11 (opt.) |

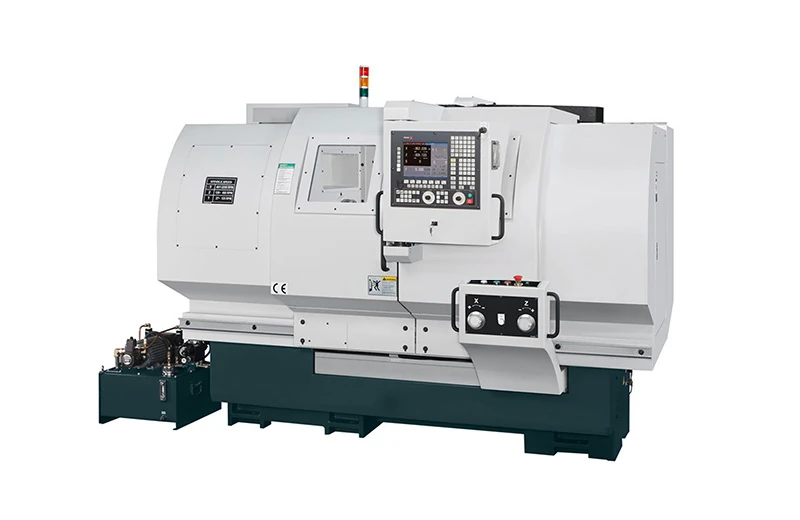

AC-2100
3 models
| Item | Unit | AC-2140 | AC-2160 | AC-2180 |
|---|---|---|---|---|
| CAPACITY | ||||
| Swing over bed | mm | 540 | 540 | 540 |
| Swing over gap | mm | 720 (opt.) | 720 (opt.) | 720 (opt.) |
| Swing over cross slide | mm | 310 | 310 | 310 |
| Dist. between center | mm | 1000 | 1500 | 2000 |
| Bed width | mm | 350 | 350 | 350 |
| SPINDLE | ||||
| Spindle bore | mm | Ø85 (3”) | Ø85 (3”) | Ø105 (4”) (opt.) |
| Spindle nose | - | D1-8 | D1-8 | A1-11 |
| Spindle speeds (3 steps) | rpm | 27~2250 | 27~2250 | 20~1500 |
| TRAVEL | ||||
| Cross slide travel X-axis | mm | 350 | 350 | 350 |
| Longitudinal travel Z-axis | mm | 850 | 1350 | 1850 |
| TAILSTOCK | ||||
| Quill dia. | mm | Ø75 | Ø75 | Ø75 |
| Quill inside taper | - | MT# 5 | MT# 5 | MT# 5 |
| MOTOR | ||||
| Spindle motor | kw | 11 / 15 (opt.) | 11 / 15 (opt.) | 11 / 15 (opt.) |

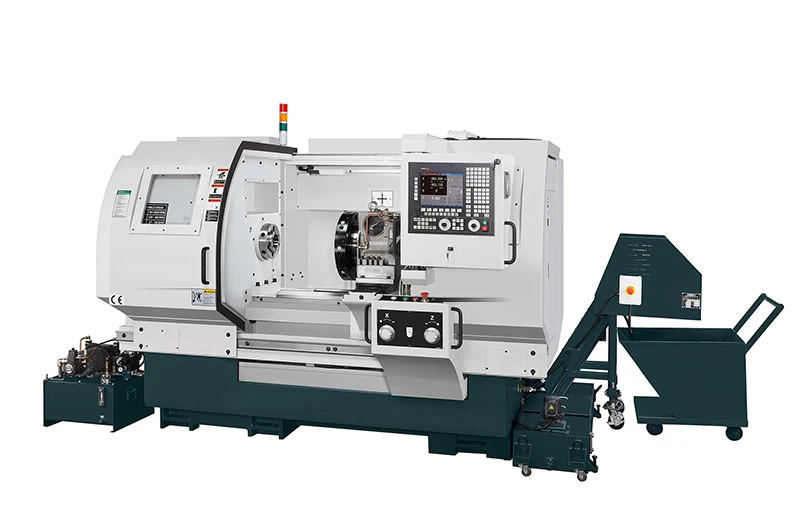

AC-2500
3 models
| Item | Unit | AC-2540 | AC-2560 | AC-2580 |
|---|---|---|---|---|
| CAPACITY | ||||
| Swing over bed | mm | 630 | 630 | 630 |
| Swing over gap | mm | 810 (opt.) | 810 (opt.) | 810 (opt.) |
| Swing over cross slide | mm | 400 | 400 | 400 |
| Dist. between center | mm | 1000 | 1500 | 2000 |
| Bed width | mm | 350 | 350 | 350 |
| SPINDLE | ||||
| Spindle bore | mm | Ø85 (3”) | Ø105 (4”) (opt.) | Ø155 (6”) (opt.) |
| Spindle nose | - | D1-8 | A1-11 | A2-11 |
| Spindle speeds (3 steps) | rpm | 27~2250 | 20~1500 | 10~800 |
| TRAVEL | ||||
| Cross slide travel X-axis | mm | 350 | 350 | 350 |
| Longitudinal travel Z-axis | mm | 850 | 1350 | 1850 |
| TAILSTOCK | ||||
| Quill dia. | mm | Ø75 | Ø75 | Ø75 |
| Quill inside taper | - | MT# 5 | MT# 5 | MT# 5 |
| MOTOR | ||||
| Spindle motor | kw | 11 / 15 (opt.) | 11 / 15 (opt.) | 11 / 15 (opt.) |
Specifications are subject to change without notice; the delivered machine governs. Entries marked "-" are not listed in the catalogue - please enquire.
