Sinker EDM Machines Made in Taiwan
Select model

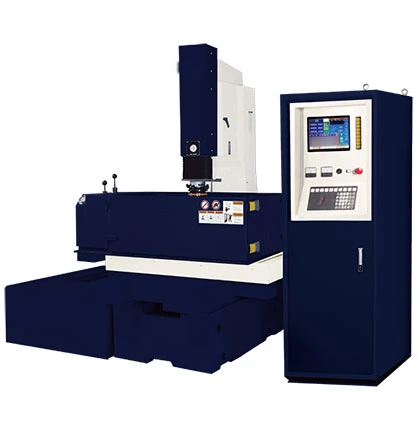

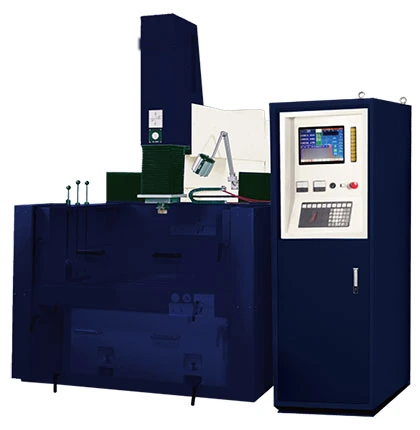

S-550ZNC S-550CNC S-1060CNC
Machine specifications Item Unit S-550ZNC Work tank (L x W x H) mm(inch) 1,170(46) / 690(27) / 425(17) Work table (L x W) mm(inch) 800(32) / 450(18) Table travel (X) mm(inch) 500(20) Table travel (Y) mm(inch) 400(16) Servo travel mm(inch) 200(8) Workhead travel (Z2) mm(inch) 300(12) Distance between platen & table mm(inch) 240(9)~740(29) Max. electrode weight kgs 180 Max. workpiece weight kgs 1,350 Outside dimensions (L x W x H) mm(inch) 1,350(53) / 1,640(65) / 2,150(85) Weight kgs 1,850
Dielectric tank specifications Item Unit S-550ZNC Capacity L 550 Weight kg 200 Outside dimensions(L x W x H) L W H 1200(47) 1000(39) 460(18)
Machine specifications Item Unit S-550CNC Work tank (L x W x H) mm(inch) 1200(47) / 690(27) / 425(17) Work table (L x W) mm(inch) 800(32) / 450(18) Table travel (X) mm(inch) 500(20) Table travel (Y) mm(inch) 400(16) Servo travel mm(inch) 350(14) Distance between platen & table mm(inch) 275(11)~675(22) Max. electrode weight kgs 220 Max. workpiece weight kgs 1500 Outside dimensions (L x W x H) mm(inch) 1,350(53) / 1,640(65) / 2350(93) Weight kgs 1900
Dielectric tank specifications Item Unit S-550CNC Capacity L 550 Weight kg 200 Outside dimensions(L x W x H) L W H 1200(47) 1000(39) 460(18)
Machine specifications Item Unit S-1060CNC Work tank (L x W x H) mm(inch) 1900(75) / 1100(43)/615(24) Work table (L x W) mm(inch) 1250(49) /750(30) Table travel (X) mm(inch) 1000(39) Table travel (Y) mm(inch) 600(24) Servo travel mm(inch) 500(20) Distance between platen & table mm(inch) 420(17)~920(36) Max. electrode weight kgs 350 Max. workpiece weight kgs 2750 Outside dimensions (L x W x H) mm(inch) 3400(134) /2600(102) / 3200(126) Weight kgs 5500
Dielectric tank specifications Item Unit S-1060CNC Capacity L 1770 Weight kg 500 Outside dimensions(L x W x H) L W H 2300(91) 1500(59) 580(23)
Power supply unit (shared across the series) Item Unit 30A 60A 90A 120A 180A Max. machining current A 30 60 90 120 180 Max. power input KVA 3 4.5 8 12 18 Max. removal ratio mm³/min 250 430 700 900 1500 Min. electrode wear ratio % 0.15 0.15 0.15 0.15 0.15 Best surface roughness um/Ra 0.18 0.18 0.18 0.18 0.18 Outside dimensions mm (inch) 820X620X1700 (32X24X67) 820X620X1700 (32X24X67) 820X620X1700 (32X24X67) 820X620X1700 (32X24X67) 820X620X1700 (32X24X67)x2 Weight KGS 300 300 350 380 680
Specifications are subject to change without notice; the delivered machine governs. Power specifications are shared across the series; entries marked "-" are not listed in the catalogue - please enquire.
