SJ-10A〜SJ-15A
3 models| Item | Section | SJ-10A | SJ-12A | SJ-15A |
|---|---|---|---|---|
| Capacity at 90 | ○ Round | 10" (260mm) | 12" (300mm) | 15" (380mm) |
| □ Square | 9" (230mm) | 10" (260mm) | 11" (280mm) | |
| ▭ Rect. | 6 3/4"x 14" (170x360mm) | 8"x 13" (200x330mm) | 9"x 16" (230x410mm) | |
| Blade size | — | 1"x150 3/8" (27mmx0.9mmx3820mm) | 1"x150 3/8" (27mmx0.9mmx3820mm) | 1"x168" (27mmx0.9mmx4265mm) |
| Motor | — | 2HP(1.5KW) | 3HP(2.25KW) | 3HP(2.25KW) |
| Speed range | — | 75,130,180,220 FPM (23,40,55,67 MPM) | 45,75,90,120,150,240 FPM (14,23,27,36,46,73 MPM) | 47,80,95,127,158,250 FPM (14,24,29,38,48,76 MPM) |
| Packing size | — | 82" x 37" x 52" (209cmx95 1/2cmx132cm) | 82" x 37" x 52" (209cmx95 1/2cmx132cm) | 90" x 37" x 58" (228cmx95 1/2cmx148 1/2cm) |
| Net weight | — | 700Kgs (1540lbs) | 900Kgs (1980lbs) | 1100Kgs (2420lbs) |
| Gross weight | — | 800Kgs (1760lbs) | 1000Kgs (2200lbs) | 1200Kgs (2640lbs) |

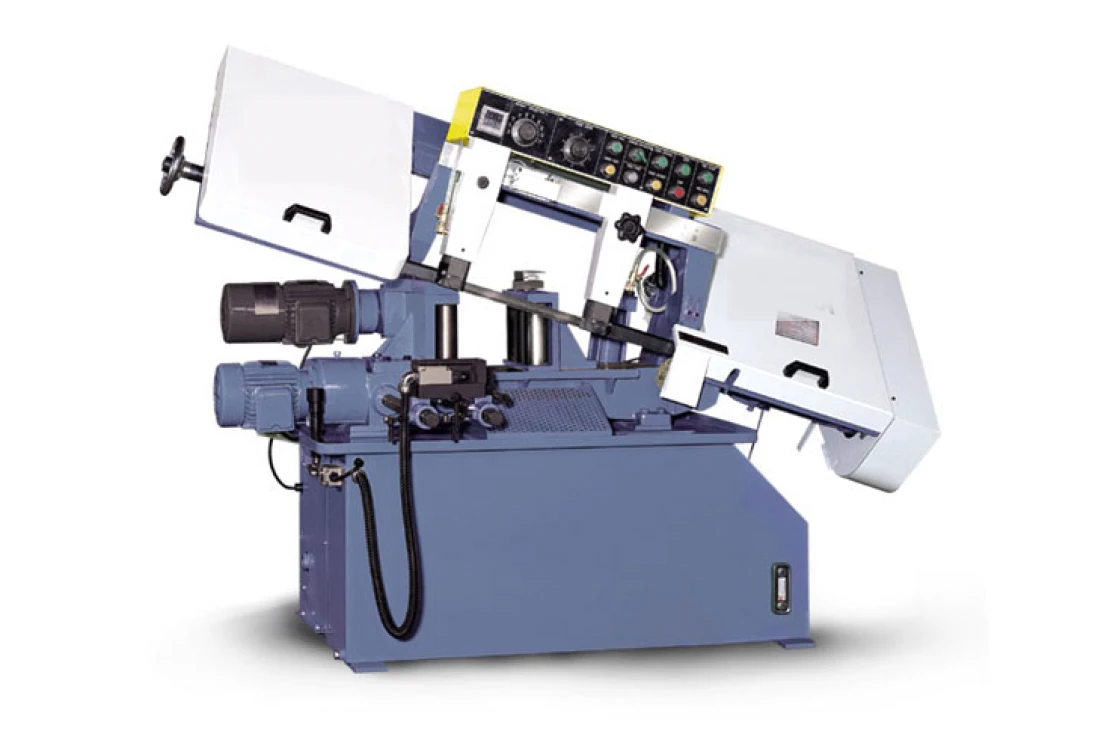

SJ-10AA〜SJ-15AA
3 models
| Item | Section | SJ-10AA | SJ-12AA | SJ-15AA |
|---|---|---|---|---|
| Capacity at 90 | ○ Round | 10" (260mm) | 12" (300mm) | 15" (380mm) |
| □ Square | 9" (230mm) | 10" (260mm) | 11" (280mm) | |
| ▭ Rect. | 6 3/4"x 14" (170x360mm) | 8"x 13" (200x330mm) | 9"x 16" (230x410mm) | |
| Blade size | — | 1"x150 3/8" (27mmx0.9mmx3820mm) | 1"x150 3/8" (27mmx0.9mmx3820mm) | 1"x168" (27mmx0.9mmx4265mm) |
| Motor | — | 2HP(1.5KW) | 3HP(2.25KW) | 3HP(2.25KW) |
| Speed range | — | 75,130,180,220 FPM (23,40,55,67 MPM) | 45,75,90,120,150,240 FPM (14,23,27,36,46,73 MPM) | 47,80,95,127,158,250 FPM (14,24,29,38,48,76 MPM) |
| Packing size | — | 82" x 37" x 52" (209cmx95 1/2cmx132cm) | 82" x 37" x 52" (209cmx95 1/2cmx132cm) | 90" x 37" x 58" (228cmx95 1/2cmx148 1/2cm) |
| Net weight | — | 700Kgs (1540lbs) | 900Kgs (1980lbs) | 1100Kgs (2420lbs) |
| Gross weight | — | 800Kgs (1760lbs) | 1000Kgs (2200lbs) | 1200Kgs (2640lbs) |
Specifications are subject to change without notice; the delivered machine governs. Cutting capacity is listed per cross-section; entries marked "-" are not listed in the catalogue - please enquire.
