EDM Machines
Small Hole EDM Drilling Machines
Made in Taiwan
Select model
D-430CNC
Machine specifications
| Item | Unit | D-430CNC |
|---|---|---|
| Work table dimension | mm | 510x390 |
| Max. workpiece dimension | mm | 975x740 |
| Table travel X/Y | mm | 400x300 |
| Z-axis travel | mm | 350 |
| Ram servo travel | mm | 350 |
| Max. length of electrode | mm | 400 |
| Min. electrode diameter | mm | ∅ 0.3-3.0 |
| Max. workpiece weight | Kgs | 500 |
| Dielectric | — | Water |
| Capacity of dielectric | litres | 100 |
| Machine weight (NW/GW) | — | 1750/2050 |
| Packing dimension | cm | 150x180x224 |

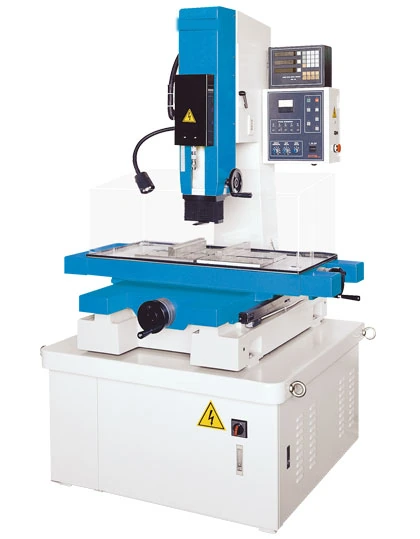

D-405CNC
Machine specifications
| Item | Unit | D-405CNC |
|---|---|---|
| Work table dimension | mm | 600x300 |
| Max. workpiece dimension | mm | 1000x300 |
| Table travel X/Y | mm | 450x350 |
| Z-axis travel | mm | 350 |
| Ram servo travel | mm | 350 |
| Max. length of electrode | mm | 400 |
| Min. electrode diameter | mm | ∅ 0.2 ~ 3.0 |
| Max. workpiece weight | Kgs | 300 |
| Dielectric | — | Water |
| Capacity of dielectric | litres | 20 |
| Machine weight (NW/GW) | — | 1000/1100 |
| Packing dimension | cm | 145x145x221 |

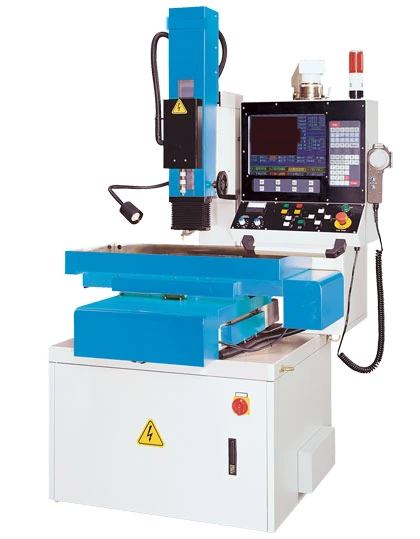

D-205CNC
Machine specifications
| Item | Unit | D-205CNC |
|---|---|---|
| Work table dimension | mm | 500x300 |
| Max. workpiece dimension | mm | 990x490 |
| Table travel X/Y | mm | 350x250 |
| Z-axis travel | mm | 350 |
| Ram servo travel | mm | 150 |
| Max. length of electrode | mm | 400 |
| Min. electrode diameter | mm | ∅ 0.3 ~ 3.0 |
| Max. workpiece weight | Kgs | 150 |
| Dielectric | — | Water |
| Capacity of dielectric | litres | 20 |
| Machine weight (NW/GW) | — | 850/950 |
| Packing dimension | cm | 130x150x224 |
Power specifications (shared across the series)
| Item | Unit | All models |
|---|---|---|
| Max. current | — | 25A |
| Peak current setting (IP) | — | 6 Steps |
| Pulse on-time setting | — | 9 Steps |
| Pulse off-time setting | — | 9 Steps |
| High volts | — | 3 Steps |
| Power input | — | 220/380/415V |
| Max. rating power | — | 4KVA |
Specifications are subject to change without notice; the delivered machine governs. Power specifications are shared across the series; entries marked "-" are not listed in the catalogue - please enquire.
